Curse of Enchantia (1992) ECS
———————————–
Great game to make your mind think what you will need
——————————
original game (find here)
an amiga or an amiga emulator (winuae)
an action replay cartridge or ar3 rom image for use with winuae
once u have all these set up we shall begin our first task is to see what type of protection this game has so boot the orignal up and play for a while ,notice anything pop up saying goto manual page XX line Xx ect….? no?

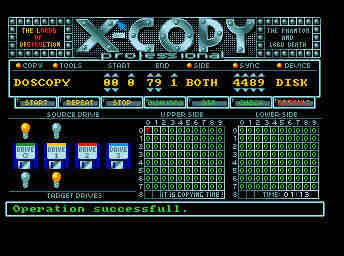

ok cool then i presume the protection is disc based so boot up your copy of X-COPY (what u mean u dont have it ,dont lie everyone had a copy of this) and lets make a backup of the original disc ,now what this does is well make a backup for us to use (if its possible) and also tells us what type of disc protection is on the game so you start to make a copy and oh no first track upper side has an error :O but thats ok the rest of the tracks are clean
so what this tells us is that this game is not MFM protected which is a bitch to crack because every track apart from the boot sector,is protected so we only have 1 track protected thats cool it probibly means its just a copylock protection and what this means is the error track cant be duplicated with a standard amiga you need a special machine,so when the game kicks and a copylock routine executes to check this track and make sure its the original track and since it cant be duplicated it checks and is unable to find that track and thus cause the game to crash so lets test it but there are 6 disks to this game so test them all in the same way you will notice only the first disk is protected this way so load up the backup disk you just made after a while you will notice the nothing is happening .. just a black screen hmm then the amiga resets itself, hmm it doesnt do this with the original so this must be the protection check ok so load up the orignal disk you have and wait for the black screen to pass then you should see a CORE logo like this

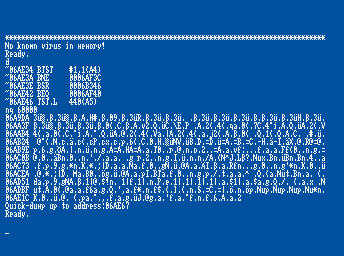

when you do hit old blue (action replay button) then type D and press enter you should see something like this
maybe not around the same address as in the picture but around 60000 area so lets see where the start of this code well starts 😛 type NQ 60000 after a short while some jibberish apears on screen press ESC quick when it does should look like this

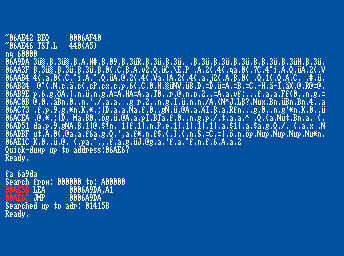

the start of all this jibberish seems to be at address 06A9DA hmm ok so lets see what jumps into this address type FA 06A9DA this will scan the memory for a part of code that jumps ino this address once its done searching we end up with 2 address points
we are interested in the second point the JMP one take note of the address of this point which is 0AE6C ok now we are armed with this address point lets reload the backup disk and just before the crash when the screen turns black press thee action replay button and look at the address point 0AE6C type
D 0AE6C
you should see a jmp but to an unknown address a weird looking one that seems out of range so lets replace that with the JMP we have type
A AE6C
JMP 6A9DA
then press enter twice to get out of write mode

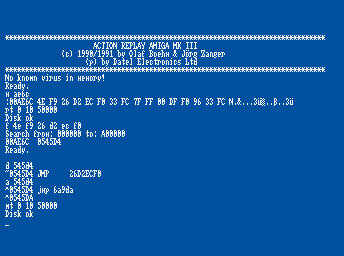

now press X to exit AReplay and see what happens AH the CORE logo apears and the game starts to load 🙂 ok so lets change this on a perminant basis reboot wit hthe backup disk and when the black screen appears fire up the action replay and type
M AE6C
and a line of numbers and letters will appears press esc to get out of that mode and type
RT 0 10 050000
this will read the first part of the disk into memory location 050000 what we need to do now is search for those numbers and letters so type
f 4e 26 d2 ec f0
and we end up with 2 address points the first is the one we already have but the second is the one from the disk ,this is the one we need to change so lets check that address type
D 545D4
yup its the same weird JMP so type
a 545D4
JMP 6A9DA
press enter twice now lets write this back to disk type
WT 0 10 050000
once this is done reboot and try out our new disk
woo it works
this is good enough but well it still takes a second or 2 before the CORE logo appears which means the RNC is still doing its routine and checking so just to be safe lets bypass this incase it gives us problems later in the game so reboot with backup disk and hit old blue on black screen we have the jmp address so lets check this part of code out
type d AE6C

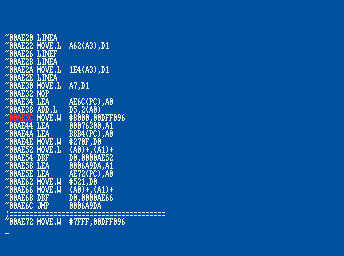

but this looks like the end of the code so scroll down till you see the JMP go ff screen then scroll back up past the JMP not to far
the address highlighted in red is the start of this code so take note of that address AE3C
type M AE3C
taek note of the first lot of binary 33 FC 80 00 ok now we need to find the RNC like most non dos games the boot code normaly goes to address A498 so lets scan this type

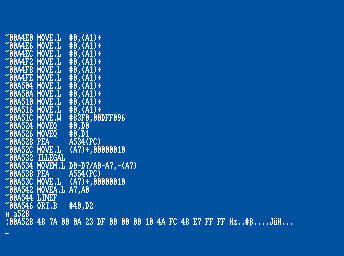

D a498
scroll down some alot of harmless code do you see the PEA at address A528 typical RNC so lets edit this to jump to the start od the jmp code but we cant do it in memory we have to edit the disk and all these address wont mean a thing when we edit the disk thsi si why we take note of the binary numbers and letters so we can compare the memory locations with data on the disk so type
M A528
now we are armed once again with numbers and digits 😛 so lets check the disk out type
RT 0 05 050000
and search for these binarys 🙂 first we need to look for the JMP start code so type
F 33 FC 80 00
which gives us 2 address points we only need the second one at 0545A4 take note of that address its important now lets look for the RNC start type 48 7A 00 0A right so we have 2 address again lets edit the second one of these which should be 53C90 type
a 52C90
bra 545A4
press enter twice what we done was edit the start of the RNC to just skip the RNC and goto the JMP code now lets write it back to disk type
WT 0 05 050000

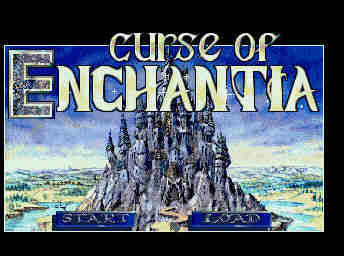

lets reboot and try it 😀 yup now the CORE logo comes on straight away and the game loads with no problems 🙂 what this protection done was encrypt the JMP to 6A9DA and would only un encrypt it when the protection was passed so we trick it by bypassing the whole protection and jumping to that address
